| Brand Name : | EGL |
| Model Number : | Single SM4 Geophone 10Hz Vertical |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union,PayPal |
| Supply Ability : | 10000sets/month |
| Delivery Time : | 5-8 work days |
Used for For oil and gas exploration KCK Male Connector Vertical SM4 Geophone 10Hz±5%
product of Vertical Geophone

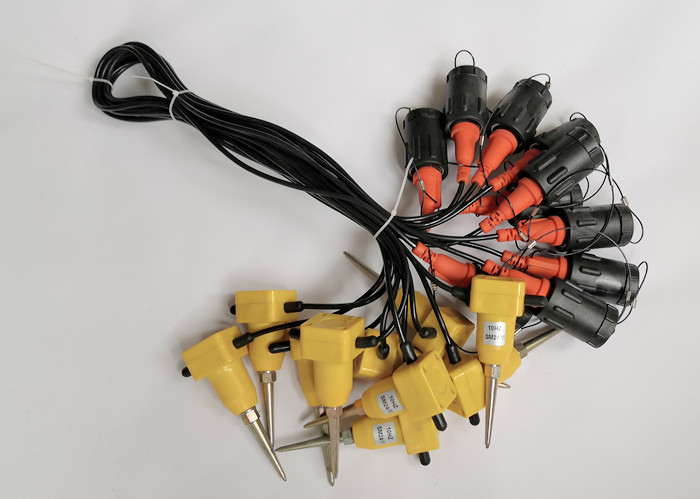

The geophone sensor or the geophone string is composed of a high-sensitivity 10hz vertical sensor, with a grounding box, a 1m lead wire and a
split spring connector. It is widely used in refraction seismic exploration of underground geophysical exploration
parameter of Vertical Geophone
| kind | Single SM4 Geophone 10Hz |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 10Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in | Standard:1mlead-in with O.D.4.6mm |
| Connector Type | *Mueller Clips |
Features of Vertical Geophone
Good parameter consistency, firm mechanism, good sealing performance, each detector signal is output independently, high sensitivity, low distortion, reasonable damping coefficient, high resolution, which can meet the requirements of multi-wave component seismic data acquisition technology

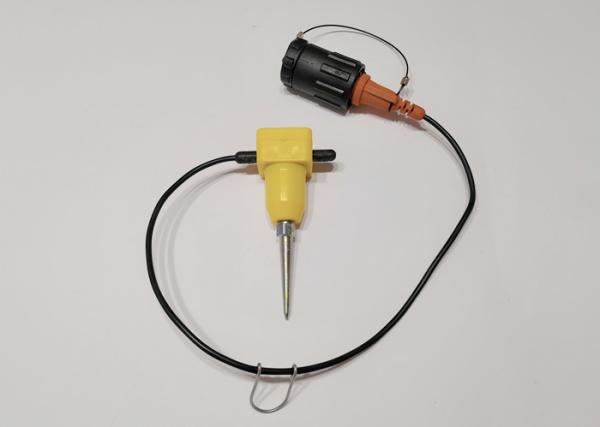

Single SM4 geophone 10Hz Vertical in land case with spike 75mm,
with 1m leader cable,terminated with KCK Male connector (408
connector).
| Type | EG-10-II (10Hz SM4) |
| Natural Frequency ( Hz ) | 10 ± 5.0% |
| Coil resistance(Ω) | 375 ± 5.0% |
| Open Circuit Damping | 0.271 ± 5.0% |
| Damping With Shunt Resistor | 0.6 ± 5.0% |
| Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) | 28.8 v/m/s ± 5.0% |
| Sensitivity With Shunt Resistor ( v/m/s ) | 22.7 v/m/s ± 5.0% |
| Damping Calibration-Shunt Resistance (Ω) | 1400 |
| Harmonic distortion ( % ) | ＜0.20% |
| Typical Spurious Frequency (Hz ) | ≥240Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 2.0mm |
| Allowable Tilt | ≤20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 32 |
| Diameter ( mm ) | 25.4 |
| Weight ( g ) | 74 |
| Warranty Period | 3 years |
| Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
| By Express | By Air | By Sea |
| Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods | Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed | Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
| MOQ | 1 set | |
| Advantage | Fast shipping | |
| Package | Packed by carton | |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
