Seismic Geophone 5Hz (EG-5-HS-I) Vertical with KCK Male connector (408 connector)
The geophone 5 Hz (EG-5-HS-II) is used to receive the weak deep and low frequency signal. This kind of geophone has following characters: Low frequency, Low distortion and high sensitivity.
It’s suitable for field single point data acquisition.
Main Feather:
Lower Frequency: 5Hz
Higher Sensitivity: 80V/m/s
Lower distortion: ≤0.1%
| Type | Single Geophone 5Hz |
| Geophone Direction | Vertical Direction / Horizontal Direction |
| Geophone Type | 5Hz |
| Geophone Case | Waterproof Land Case |
| Spike | Steel Spike length75mm |
| Lead-in | Standard:1mlead-in with O.D.4.6mm Custom Outer Diameter / Lead Distance available |
| Connector Type | *Mueller Clips *Split Spring Clip *KCK Connector( Male or Female / Push Fit or Lock Ring Type) *Kooter Connector( Male or Female /KCL male or KCL female or KC2L-4 Dual ) *Other Connector Type available |

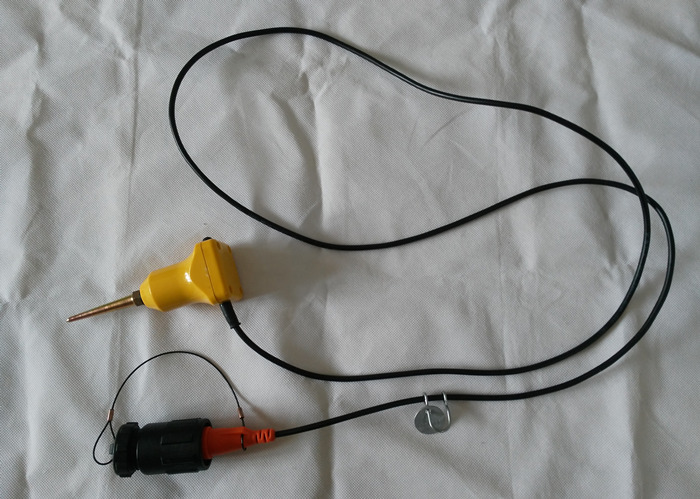

Single geophone 5Hz (EG-5-HS-II) Vertical in land case with spike 75mm, with 1m leader cable,with one D-Loop , terminated with KCK Male connector (408 connector) .
| Type | EG-5-HS-I |
| Nature Frequency Hz | 5Hz±7.5% |
| Typical spurious frequency (Hz) | ≥130Hz |
| Distortion | ≤0.1% |
| Opening Circuit Damping | 0.6±7.5% |
| Open circuit resistance(ohm) | 1850±5% |
| Opening Circuit Intrinsic Voltage Sensitivity | 80±5% V/m/s |
| Moving Mass g | 22.8g |
| Max. Coil excursion p.p (mm) | 3mm |
| Diameter | 32mm |
| Height | 44mm |
| Weight | 166g |
| Operating Temperature Range | -40℃～+80℃ |
| Limited Warranty Period | 1 year |
| Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
| By Express | By Air | By Sea |
| Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods | Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed | Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
| MOQ | 1 set | |
| Advantage | Fast shipping | |
| Package | Packed by carton | |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
