30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

EGL Equipment services Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type from wholesalers

    Buy cheap 30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type from wholesalers
    • Buy cheap 30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type from wholesalers
    • Buy cheap 30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type from wholesalers
    • Buy cheap 30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type from wholesalers

    30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

    Ask Lasest Price
    Brand Name : EGL
    Model Number : Resistivity Cable 30 Channels
    Certification : ISO9001
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 1000set/month
    Delivery Time : 5-8 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    30 Channel Seismic Cable 30 Split Spring Take - Out Molded Type

    Resistivity Cable 30 Channels ,with 30 Split Spring Take-out Molded Type

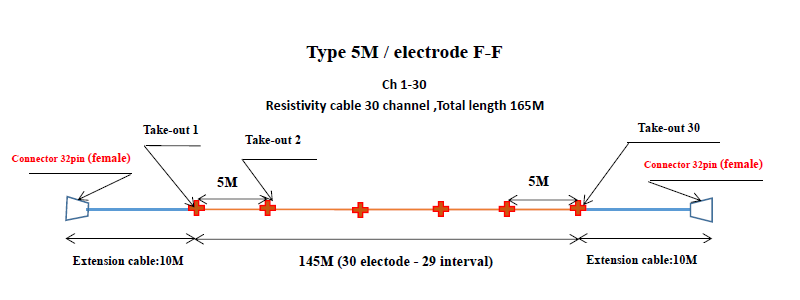

    Resistivity cable 30 channels, interval 5m, with Split Spring Take-out Molded Type,lead-in 10m at each end,terminated with Y2M32TK female Connector at each end, total cable length 165m .



    Resistivity cable 30 channels, interval 10m, with Split Spring Take-out Molded Type,lead-in 15m at each end,terminated with Y2M32TK female Connector at each end, Divide into two sections from Take-out 15 to Take-out 16 and connect with male and female plugs(Y2M32TK), total cable length 330m .


    The Extension cables M-F, Total length 165M .


    TypeResistivity Cable
    Number of Channel

    21-channel(AB)/30-channel/32-channel

    Optional

    Connector Type

    27-pin connector/

    30-pin connector/

    32-pin connector/

    50-pin connector/

    Optional

    Cable O.D7.2mm(32cores)
    Electrode Connection

    Split Spring Take-out Molded Type/

    Split Spring Take-out Ordinary Type/

    Optional

    Lead-in10m/20m / or Custom Lead-in Length
    Interval5m/10m / or Custom Interval Distance
    Working Temperature-40℃~+70℃
