EGL Equipment services Co.,LTD EGL is a professional geophone manufacturer .
7 Years
| Ask Lasest Price | |
| Brand Name : | EGL |
| Model Number : | SG10 |
| Payment Terms : | Western Union, T/T,PayPal |
| Supply Ability : | 10000pcs/month |
| Delivery Time : | 5-8 work days |
| Price : | Negotiable |

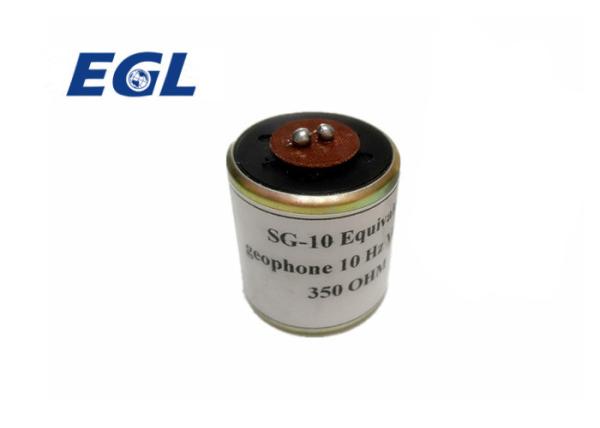

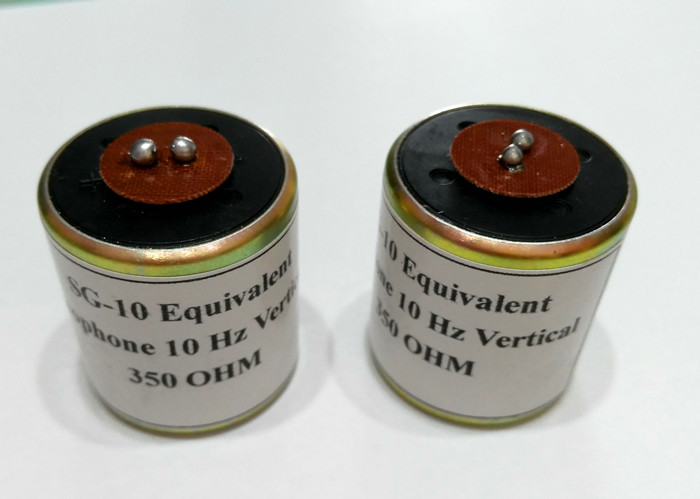

SG10 Geophone 10Hz
The SG-10 geophone is one of the most advanced geophones in the seismic industry.
The SG-10 geophone was very low distortion and the highest tilt tolerance in the industry.
Very Low distortion : < 0.075% .
| Type | SG10 Geophone |
| Natural frequency ( Hz ) | 10Hz±2.5% |
| Open circuit damping | 0.68±5% |
| Sensitivity (v/m/s) | 22.8±2.5% |
| Coil Resistance (ohm) | 350±3.5% |
| Harmonic Distortion ( % ) | ＜0.075 |
| Typical Spurious Frequency ( Hz ) | ＞240 |
| Moving Mass ( g ) | 8.4 |
| Max.coil excursion p-p (mm) | 1.78 |
| Max.tilt angle | 15º |
| Element Diameter (mm) | 27.4 |
| Element Height (mm) | 30.15 |
| Element Weight (g) | 78 |
| Operating Temperature(℃) | -40℃ to +100℃ |
All parameters specified here in are rated at a temperature 20℃±2℃
.
|
|
