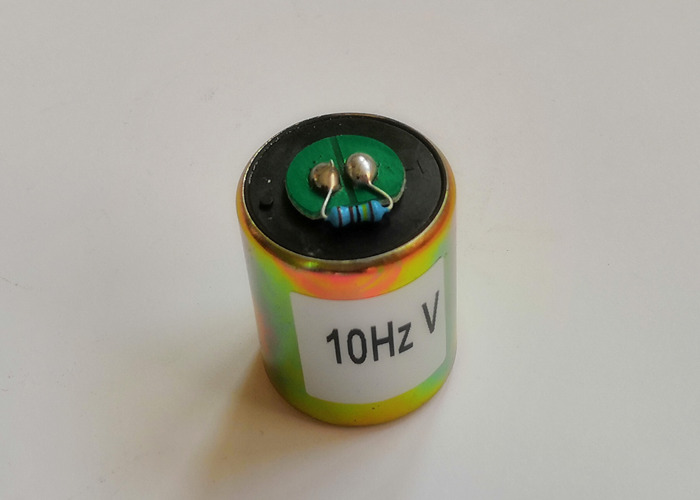

GS-32CT Geophone 10Hz
The high-precision geophone has advanced design, high false frequency and excellent anti-interference. The tolerance of each parameter is controlled within ±2.5%, the distortion is less than ≤0.1%, the performance is stable, the accuracy is high, and the signal is high. The collection is rich and accurate, and is suitable for all kinds of accurate seismic exploration. All parts are processed by precision machining, and the production process is mature and stable.
| Type | EG-10-III (GS-32CT Geophone) |
| Natural Frequency ( Hz ) | 10Hz ± 2.5% |
| Coil resistance(Ω) | 395Ω ± 2.5% |
| Open Circuit Damping | 0.316 ± 2.5% |
| Damping With Shunt Resistor | 0.7 ± 2.5% |
| Open Circuit Intrinsic Voltage Sensitivity( v/m/s ) | 27.5 v/m/s ± 2.5% |
| Sensitivity With Shunt Resistor ( v/m/s ) | 19.7 v/m/s ± 2.5% |
| Damping Calibration-Shunt Resistance (Ω) | 1000Ω |
| Harmonic distortion( % ) | ＜0.1% |
| Typical Spurious Frequency (Hz ) | ＞250Hz |
| Moving Mass ( g ) | 11.2g |
| Typical case to coil motion p-p ( mm ) | 1.5mm |
| Allowable Tilt | 10º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 33.5mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Warranty Period | 3 years |
All parameters specified here in are rated at a temperature 20℃±2℃
.
|
|
