    EG-14-ODH Omni-Directional Geophone 14Hz -40 To +120 Degree High Sensitivity 80 V/M/S

    Ask Lasest Price
    Brand Name : EGL
    Model Number : EG-14-ODH
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T, PayPal,Credit card, Western Union
    Supply Ability : 1000 pcs/month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    EG-14-ODH Omni-Directional Geophone 14Hz -40 To +120 Degree High Sensitivity 80 V/M/S

    Product Description

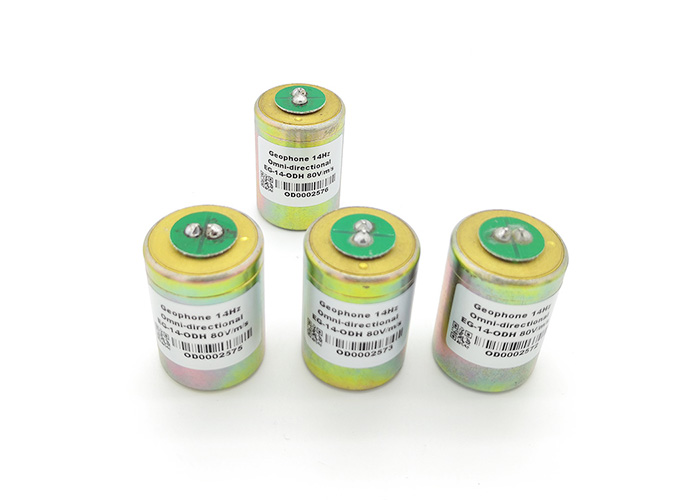

    EG-14-ODH Omni-Directional Geophone 14Hz


    EG-14-ODH geophone is a kind of geophone which can work at omni-directional.

    Omnidirectional high temperature geophones are used in petroleum exploration, well logging exploration, industrial vibration monitoring and other fields.


    - Any angle of 0 ~ 360° can be used;

    - It has the characteristics of low damping, high sensitivity, small size and light weight;

    - Sustainable use under -40°C ~ +120°C environment;

    - Unique technology and process, the performance of the detector is more stable in high temperature environment.

    Specification
    TypeEG-14-ODH
    Nature Frequency Hz14Hz -7% /+15%
    Direction0 ~ 360°
    Distortion≤0.7%
    Typical Spurious Frequency ( Hz )≧240
    Damping0.185±10%
    Coil resistance(ohm)3500±5%
    Sensitivity80 -15%/+5% V/m/s
    Moving Mass g10.2g
    Max. Coil excursion p.p (mm)4mm
    Diameter25.4mm
    Height36mm
    Weight90g
    Operating Temperature Range-40℃ to +120℃
    Limited Warranty Period2 year
    All parameters specified here in are rated at a temperature 20℃±2℃ .
    Company Profile
    EGL is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree. We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs. All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.
    Packing & Delivery
    Shipment
    DHL ,UPS , FedEx , By Air , By Sea
    MOQ
    1 pcs
    Advantage
    Fast shipping
    Package
    Packed by carton
    Payment
    Bank Transfer, Paypal, Western Union, Alibaba Pay
